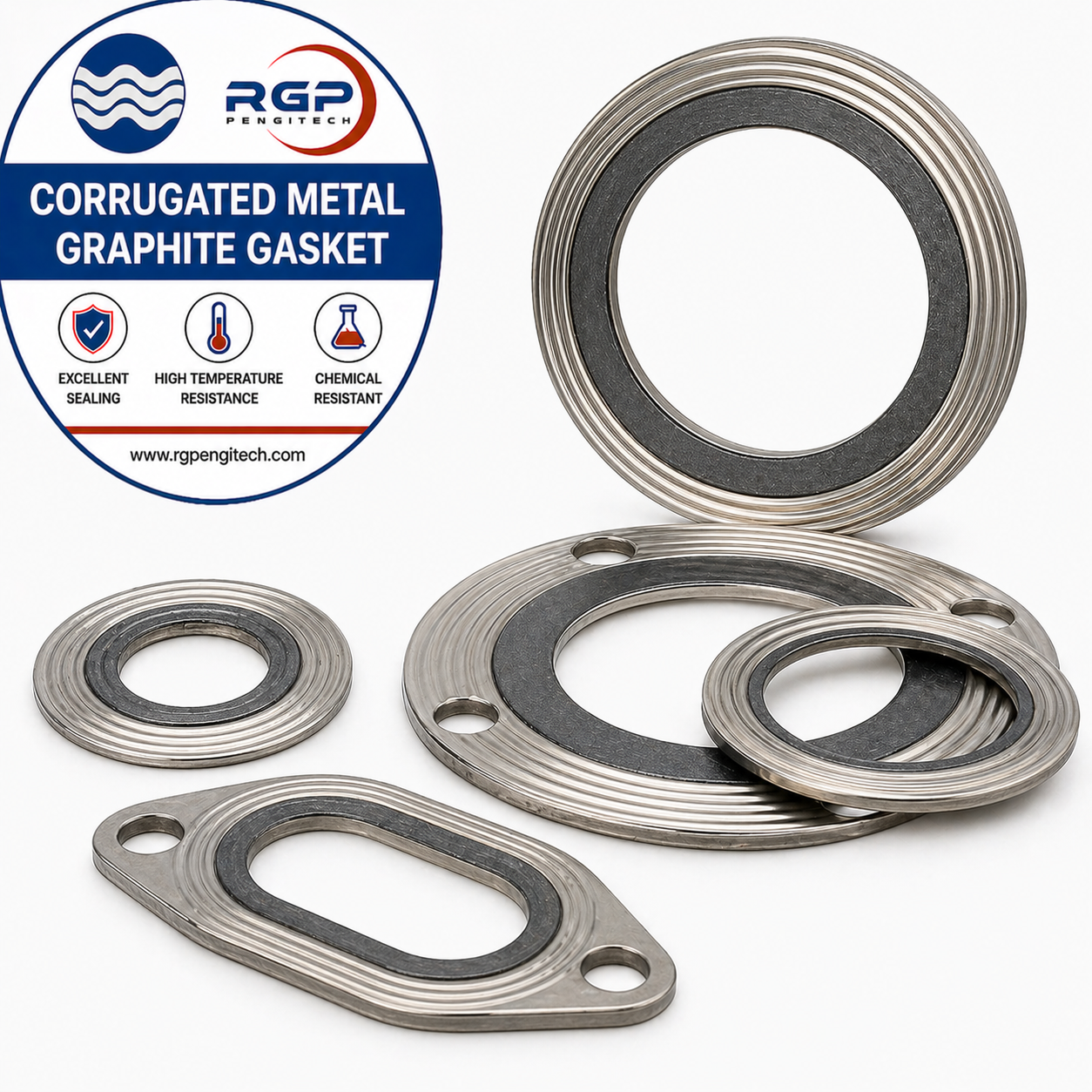

RGP Engitech supplies Corrugated Metal Graphite Gaskets featuring a stainless steel corrugated carrier with a 0.8 mm graphite layer bonded to both faces. The corrugated profile ensures effective sealing with standard bolt torque and minimal creep relaxation.

Construction:

• Carrier: SS 304 / SS 316 corrugated metal (1.5 mm height)
• Facing: Flexible graphite (0.8 mm each side)
• Peak overlap: 0.1 – 0.2 mm

Applications: Standard flanged connections, Chemical process industry, Steam services
